Stainless steel tanks in for storing water, fermentation and maturation tanks
Tanks
Stainless steel tanks type:

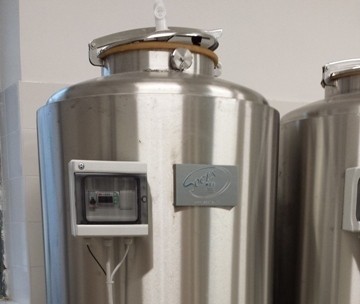

Hot water tank ELECTRICAL HEATER OR STEAM WITH COOLING CONTROL
– Stainless steel AISI 304 tank for hot water (conical lid and bottom), rock-wool insulation 50mm thickness, with welded cladding in stainless steel AISI 304:
– internal SS mirror finish <= 0,1 micron,
– n.4 adjustable legs,
– overflow, upper door 400mm, level group, temperature probe, breather device, washing group plug,
– total and partial discharge with butterfly valves,
– Electrical heating system 8 kW or cooling jacket plates, steam valves a pressure control,
– vertical tank
– digital display in touch screen in the brew-house to check and set the temperature;

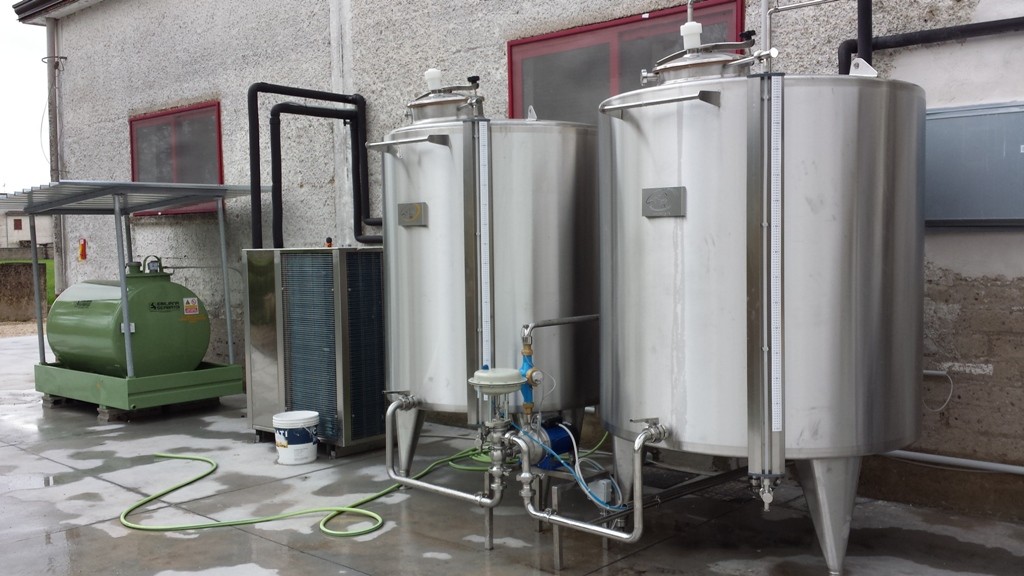

Cold water tank with cooling control:
– Stainless steel AISI 304 tank for cold water (conical lid and bottom), polyurethane insulation 30mm thickness, with welded cladding in stainless steel AISI 304:
– internal SS mirror finish <= 0,1 micron,
– n.4 adjustable legs,
– overflow, upper door 400mm, level group, temperature probe, breather device, washing group plug,
– total and partial discharge with butterfly valves,
– vertical tank,
– digital display in touch screen in the brew-house to check and set the temperature of the mixed water;

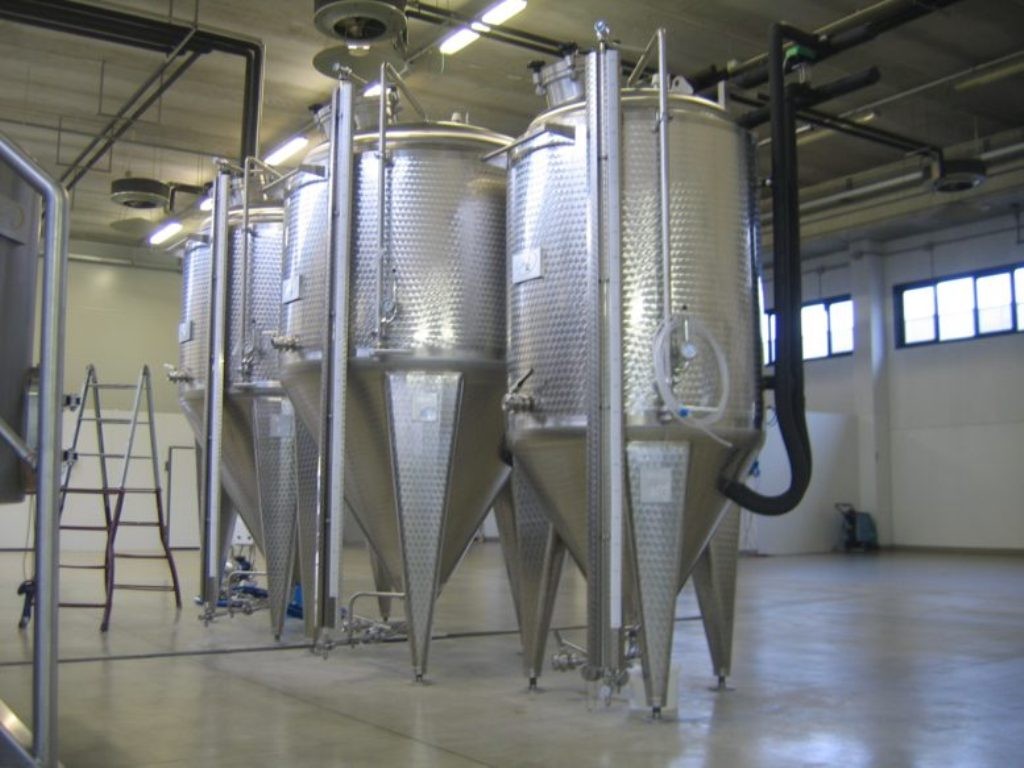

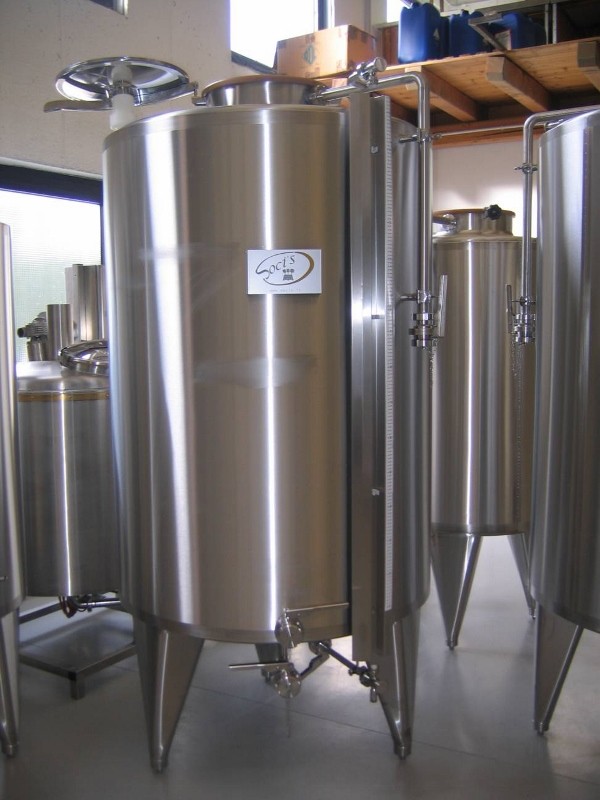

• FERMENTERS – MATURATION non ISOBARIC TANKS
(RATED CAPACITY 500, 1000, 1500, 2000, 3000, 4000 LITRES)- in acciaio inox AISI 304
– Stainless steel AISI 304,
– vertical cylindrical conical vessel,
– operating Pressure 0 bar,
– top conical 165°,
– bottom conical 120°,
– insulation polyurethane+polystyrene 30 mm,
– internal finishing SS mirror finish <= 0,1 µm,
– external finishing SS ground and satin,
– internal welding pickled, external welded cladding in AISI 304 (waterproof),
– single cooling jacket in the shell,
– washing group + CIP spray ball,

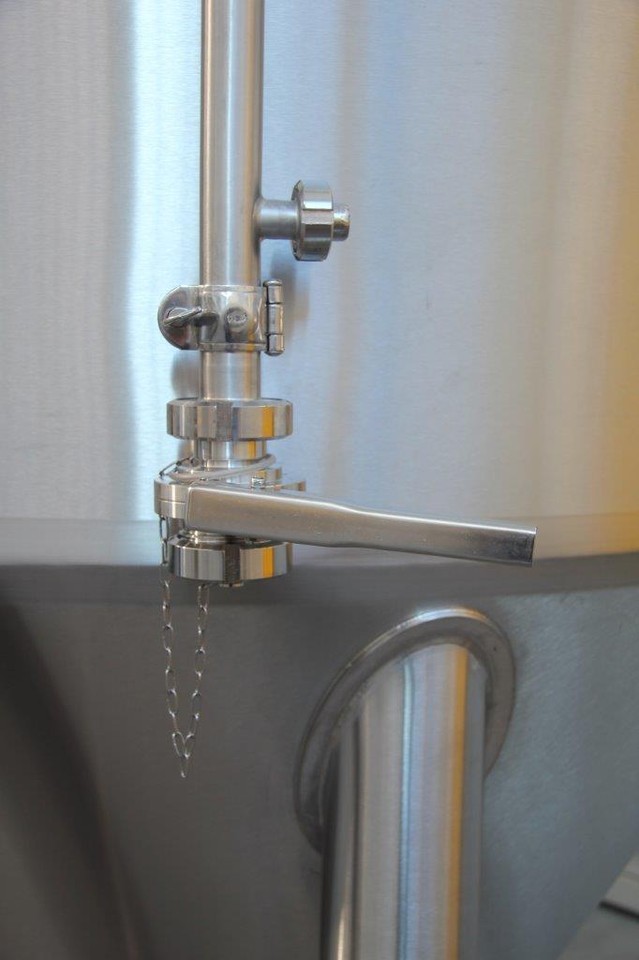

– total and partial discharge with n.2 butterfly valves,
– pressure and vacuum relief valve in polyethylene,

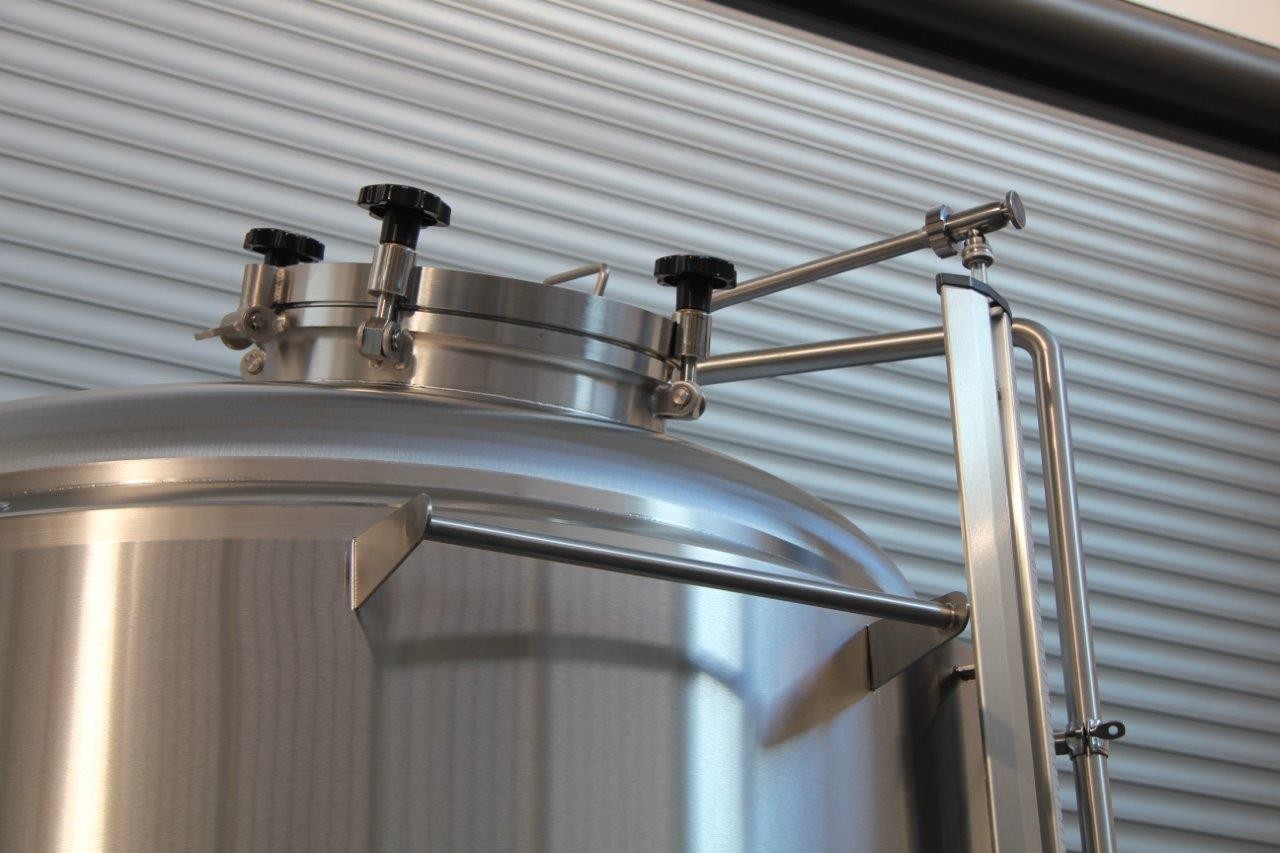

– upper door 400 mm diameter,
– 4 feed with adjustable support, ladder support;

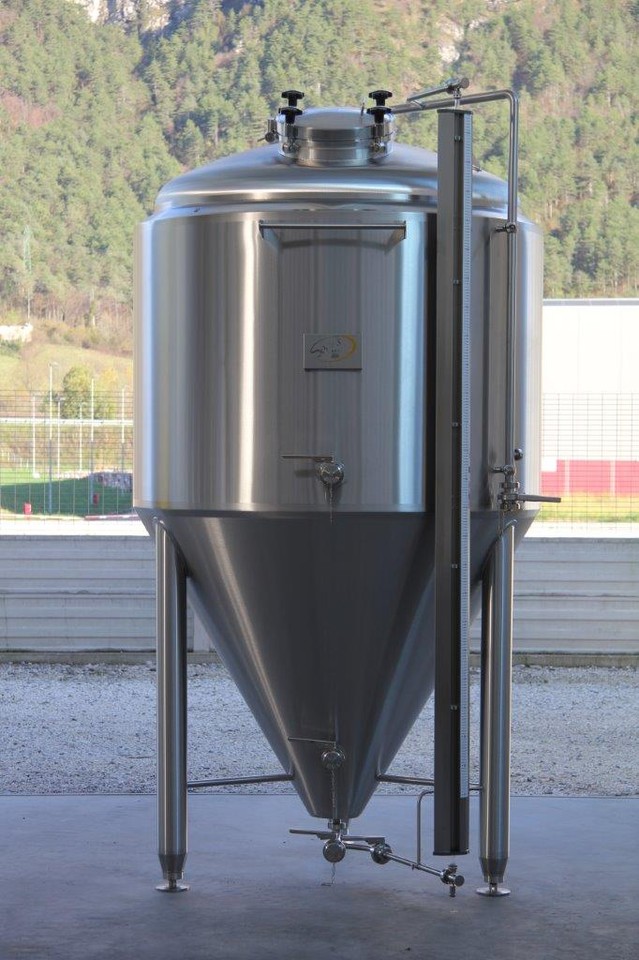

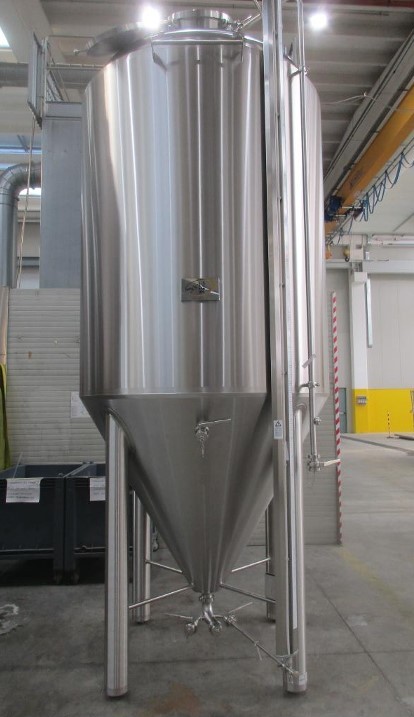

• FERMENTATION – MATURATION ISOBARIC TANKS, PED CERTIFICATED
(RATED CAPACITY 500, 1000, 1500, 2000, 3000, 4000, 6000, 8000 LITRES)
– stainless steel AISI 304,
– vertical cylindrical conical vessel,
– pressure PED test 4,3 bar,
– operating Pressure 3 bar,
– top conical decinormal dished head,
– bottom conical 60°,
– insulation polyurethane+polystyrene 80 mm,
– internal finishing SS mirror finish <= 0,1 µm,
– external finishing SS ground and satin,
– internal welding pickled, external welded cladding in AISI 304 (waterproof),
– ouble cooling jackets in cone and shell independently controlled,
– ashing group + CIP spray ball,
– CIP/Co2 group on the top of the tank,
– tube in tube discharge with n.2 butterfly valves,
– anti vacuum valve, safety valve,
– spundapparat: bunging device for CO2 with pressure gauge,
– upper door 400 mm diameter,
– 3/4 feed with adjustable support, ladder support;
